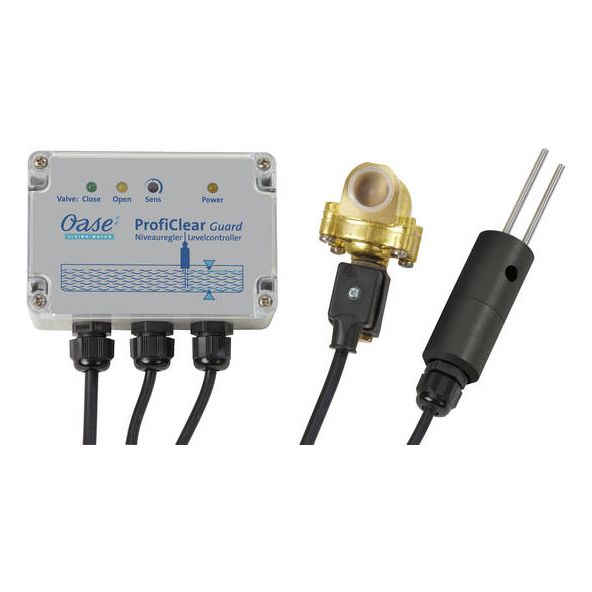

- Complete set consisting of control system, ½" solenoid valve and conductive level detection
- Sensor can be shortened to 10 mm switching differential
- Sensor sensitivity is adjustable
- Integrate switching hysteresis to prevent undesired replenishment through waves
- LED status display for the solenoid valve
- The control system can be mounted on a wall

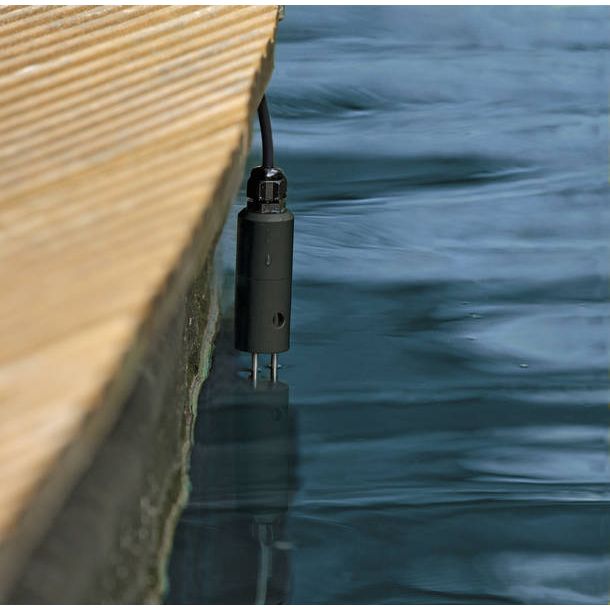

- Including sensor fastening element for projecting pond edges
- Servo-controlled 230 V brass solenoid valve (splashproof installation required)
Dimensions (L x W x H) | mm | 120 x 55 x 111 |
Rated voltage | 230 V / 50/60 Hz | |
rated voltage - sensor | V | 12 |
Power consumption | W | 3 |
Net weight | kg | 2.82 |
Power cable length | m | 2 |
Sensor cable length | m | 20 |
Cable length of the valve | m | 3 |
Connection | mm | 13 |
Connection | ½" | |
Max. operating pressure | bar | 18 |
Switching differential | mm | 25 |
Guarantee | Years | 2 |
